EE 313 Linear Systems and Signals - Lecture 7

Announcements

• Homework #4 is due by 11:59pm on Friday, Oct. 10, 2025.

Lecture

• Lecture slides on Discrete-Time Signals and Systems in PowerPoint format.
  Part 1 Notes - Part 2 Notes

• Fall 2018: Lecture notes taken by Mr. Houshang Salimian (TA)

• Fall 2017:
  • Audio recording of the Fall 2017 presentation on Oct. 3, 2017, of slides 7-1 to 7-11 in MP3 format
  • Audio recording of the Fall 2017 presentation on Oct. 10, 2017, of slides 7-10 to 8-3 in MP3 format

Supplemental

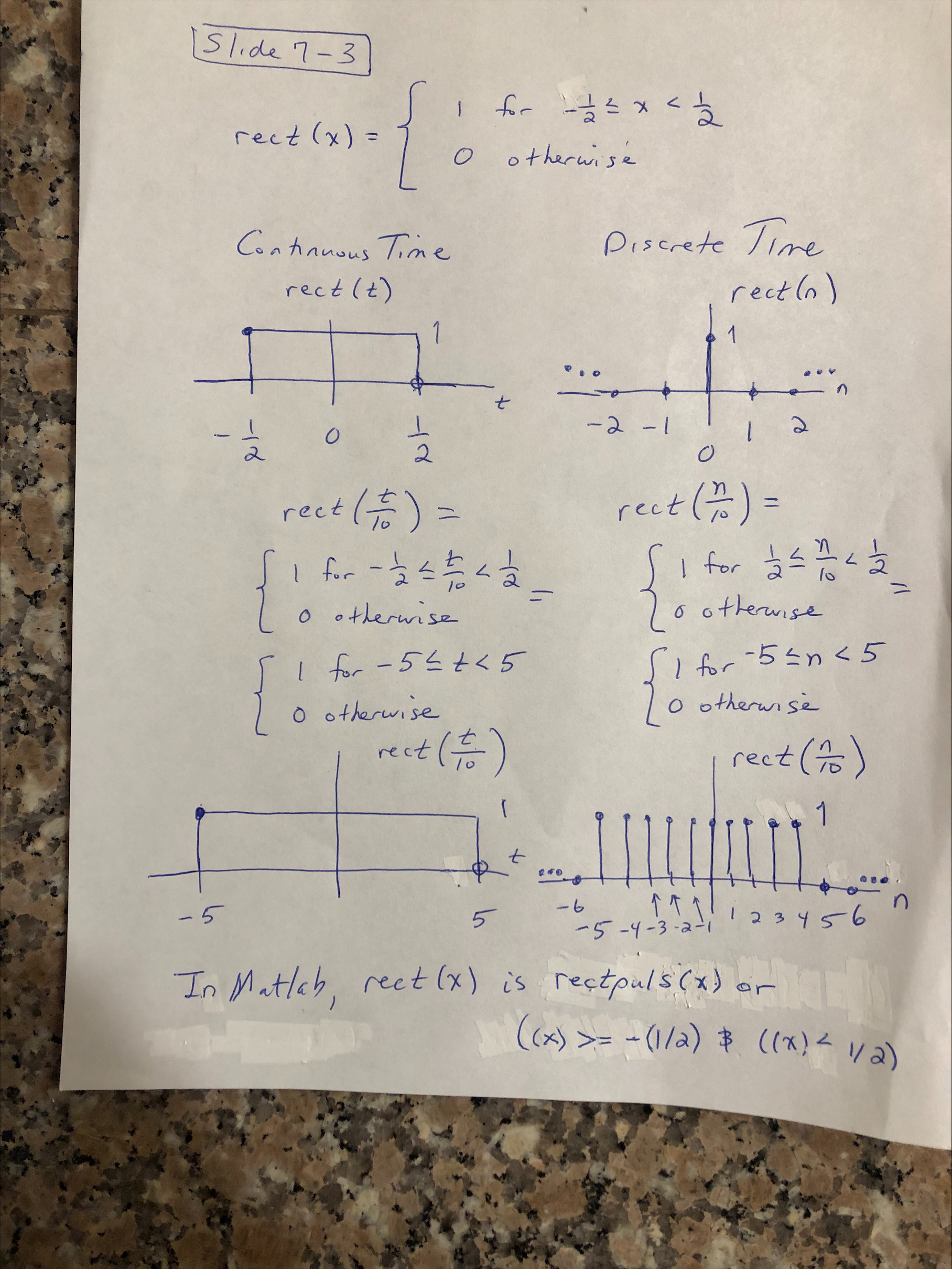

• Part 1: CT and DT Rectangular Pulses
• Part 2:
  • Output for an three-point averaging filter and first-order difference filter

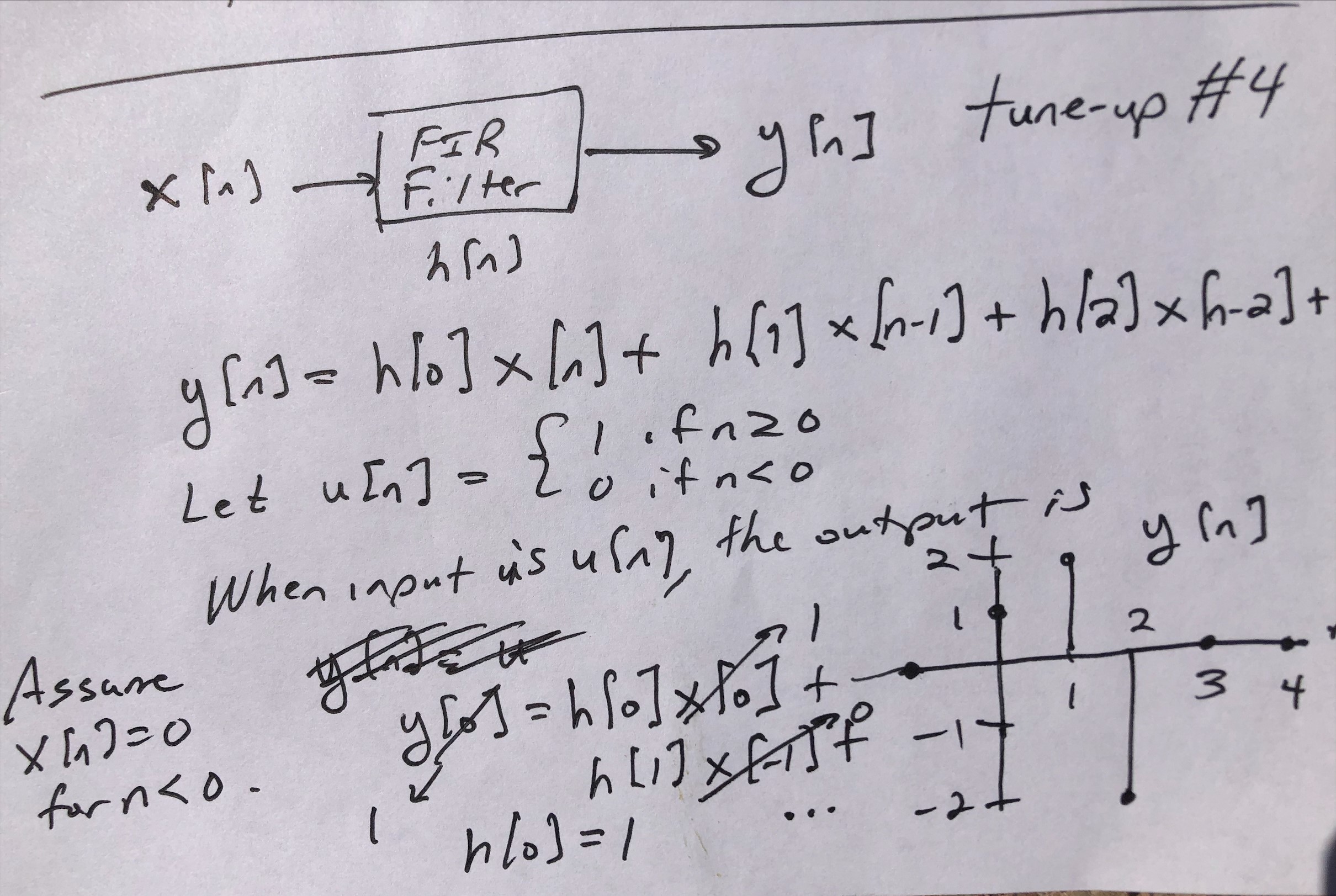

  • Notes for In-Lecture Assignment #4 on Deconvolution from fall 2024 and fall 2023

• Part 1: When to use CT Analog vs. DT Digital Filters
• Part 2:
  • FIR Filter with Gaussian Shape
  • Homework 4.2 FIR Filter

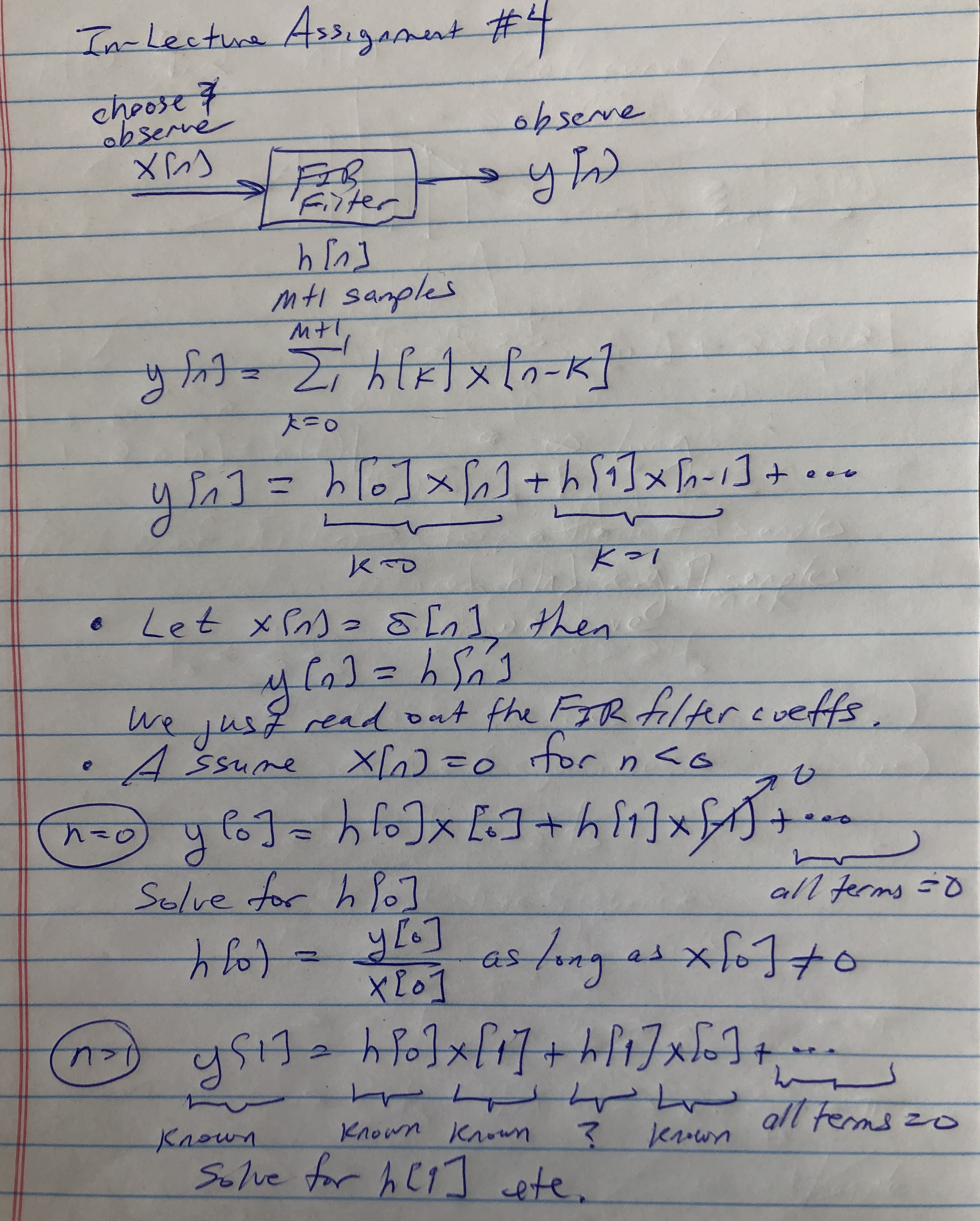

  • In-Lecture 4 assignment on Deconvolution notes

• FIR averaging filter: coefficients and passes low frequencies and attenuates high frequencies
• FIR filter output signal is convolution of the input signal and filter coefficients

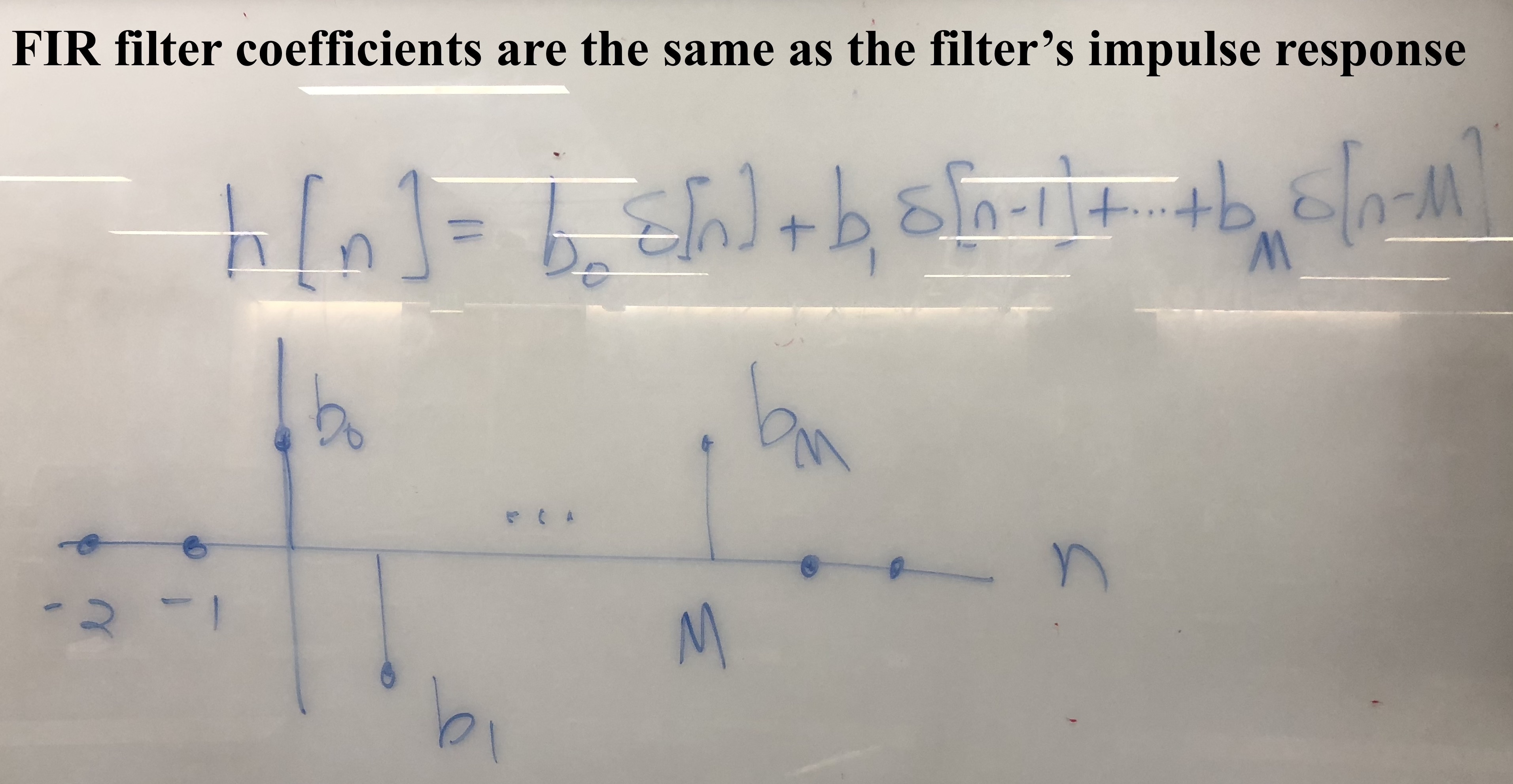

• Coefficients for an FIR filter are the filter's impulse response
• FIR filtering and impulse responses
