EE 313 Linear Systems and Signals - Lecture 12

Lecture

• Lecture slides on Continuous-Time Signals and Systems in PowerPoint format.
  • Part 1 Notes

Supplemental Information

• Fall 2024, Part 1

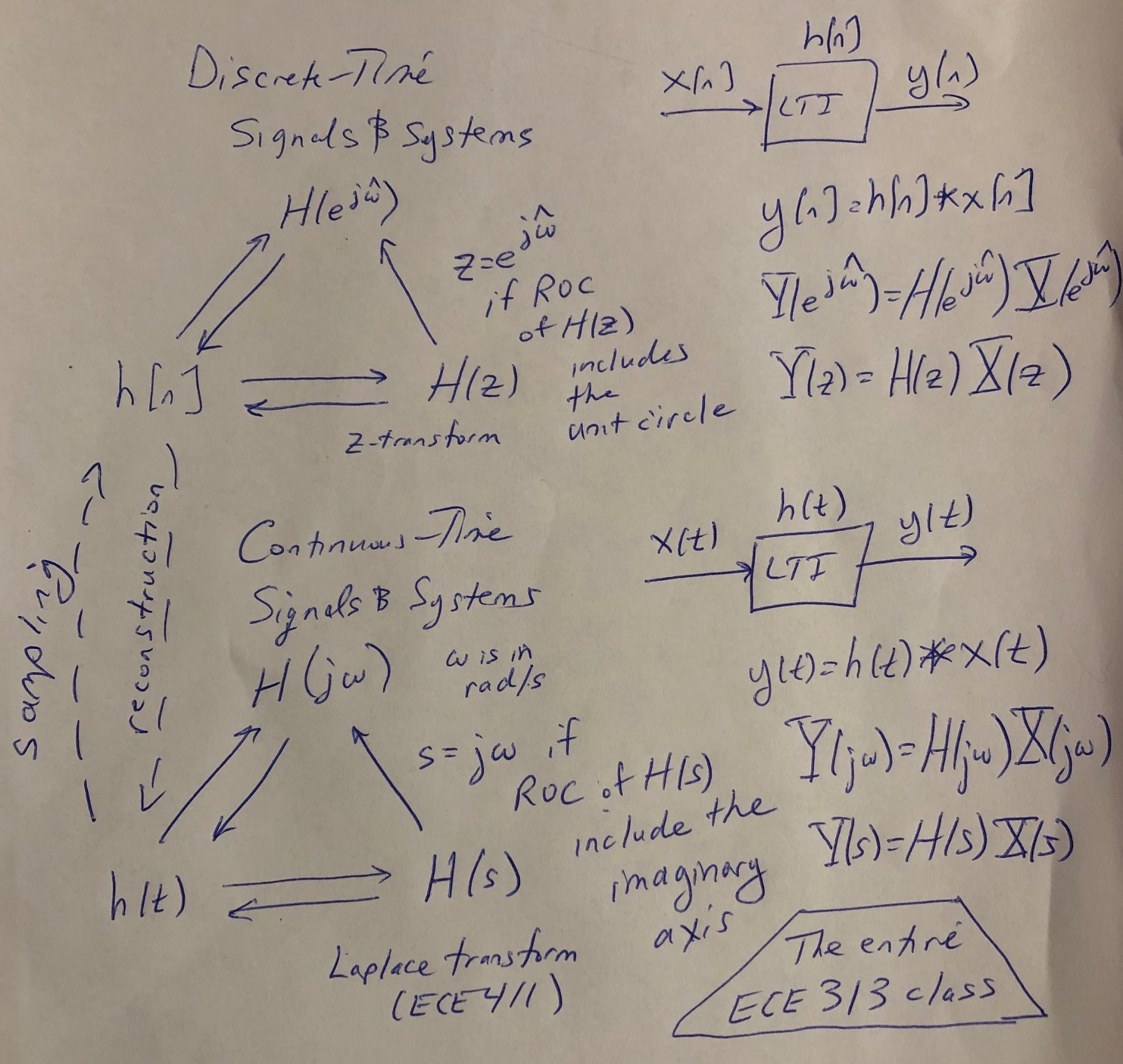

  • Doccam: ECE 313 Course Content on One Page

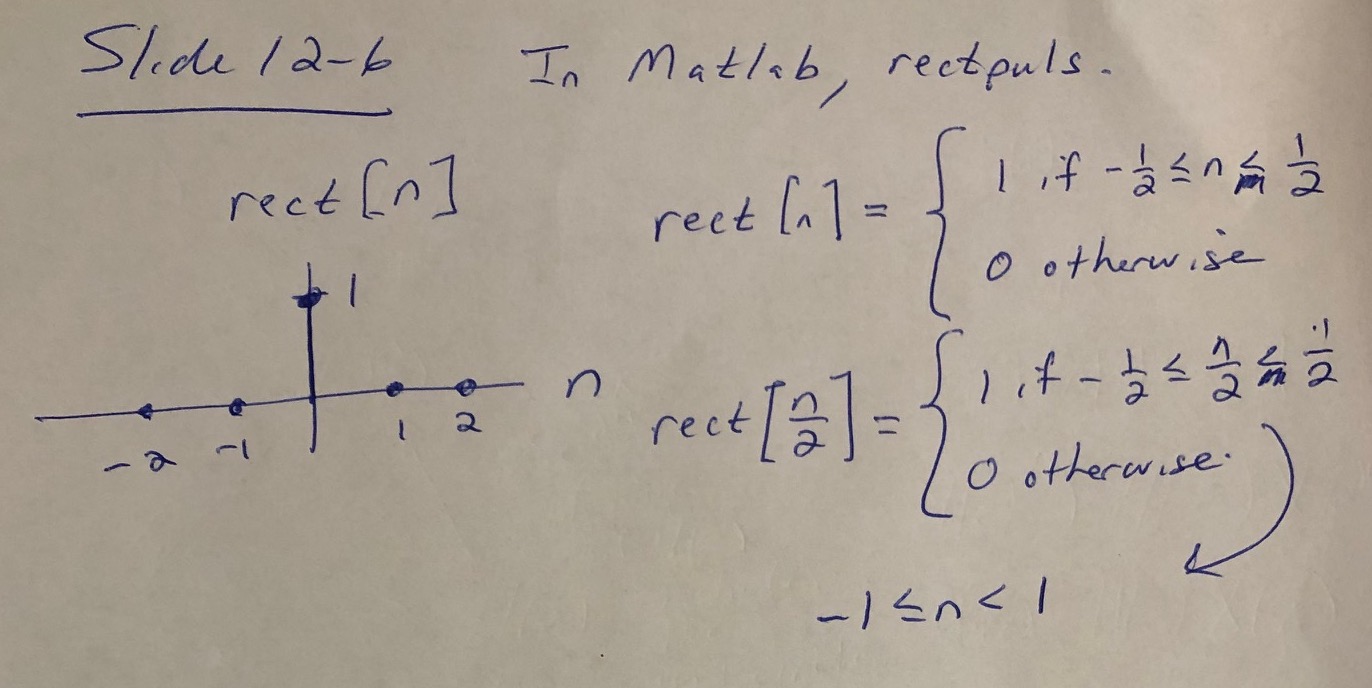

  • Doccam: Discrete-time impulse with time axis scaled

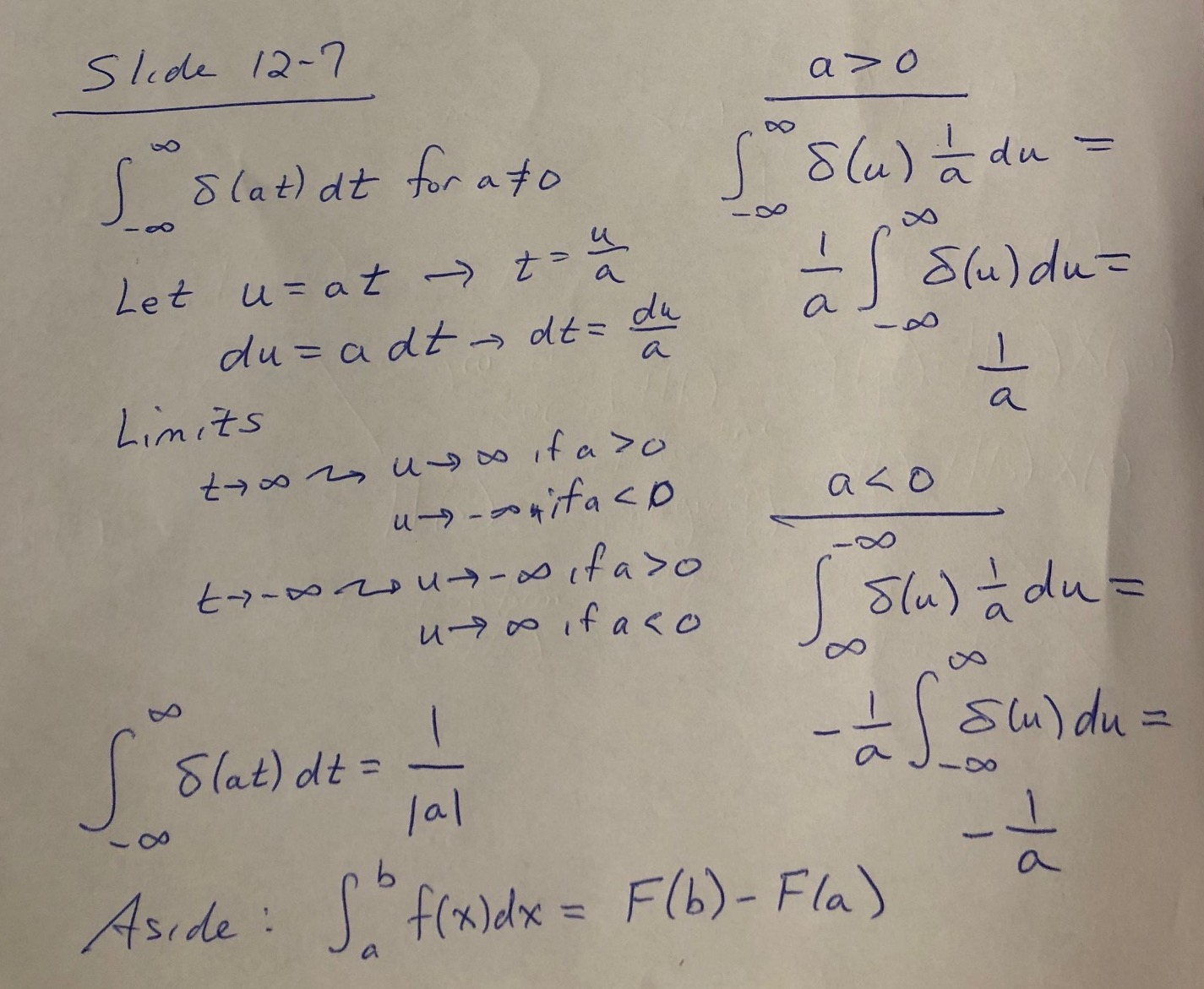

  • Doccam: Continuous-Time impulse with time axis scaled

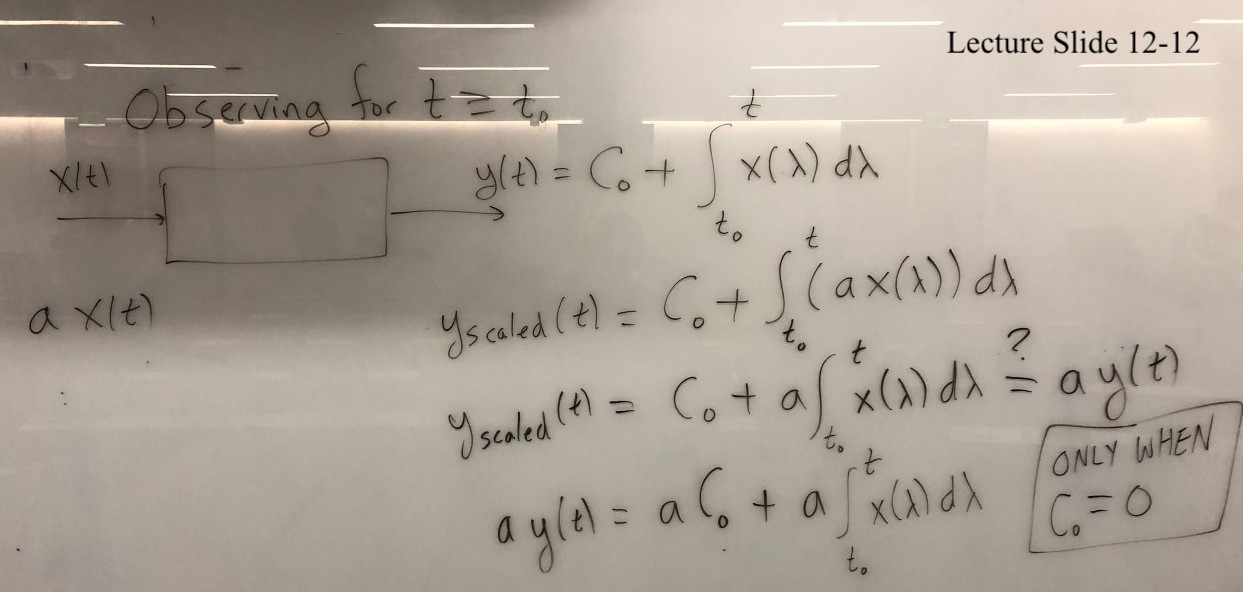

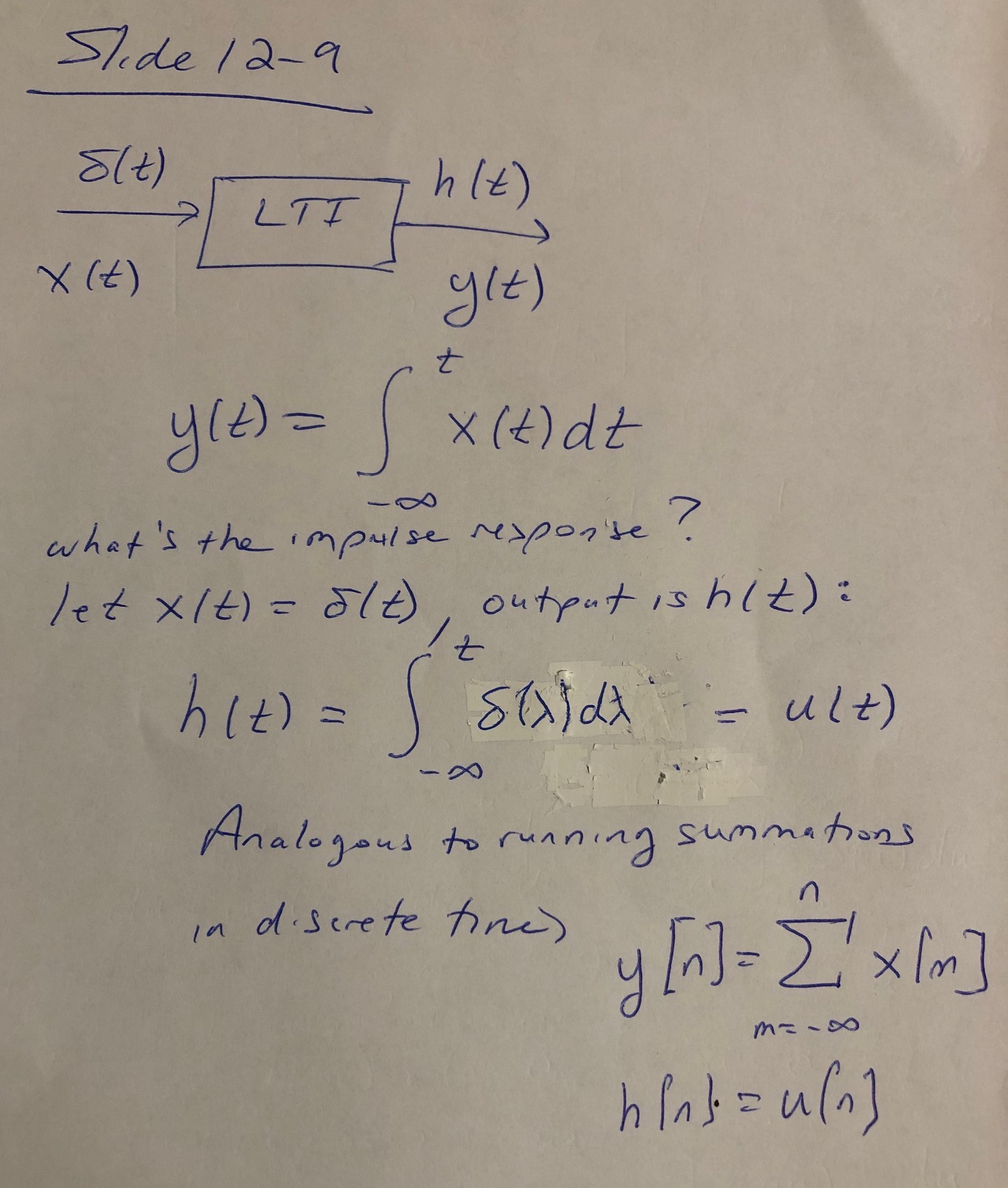

  • Doccam: Integrator Impulse Response

• Fall 2024, Part 2

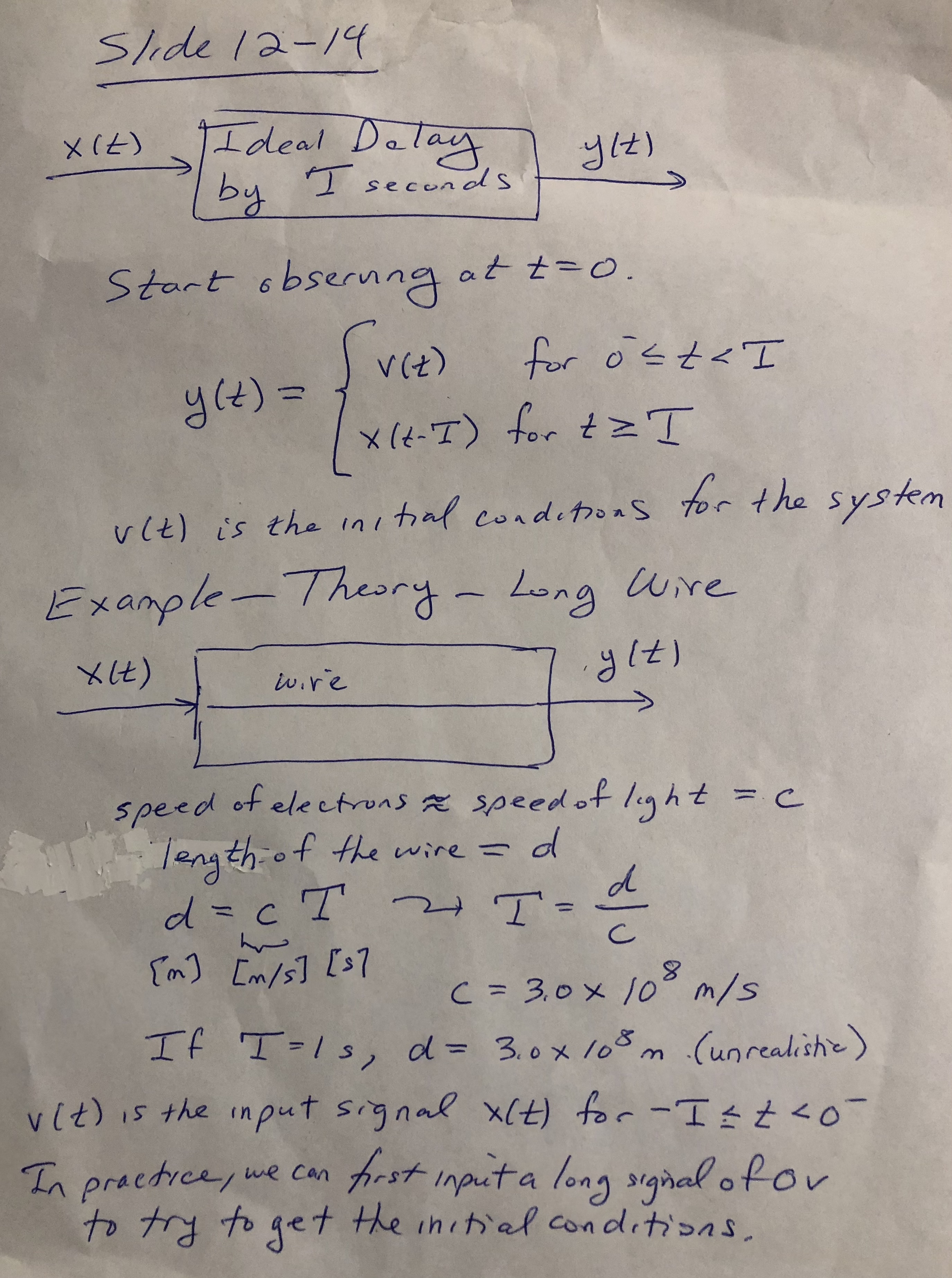

  • Doccam: Initial conditions for an ideal delay system

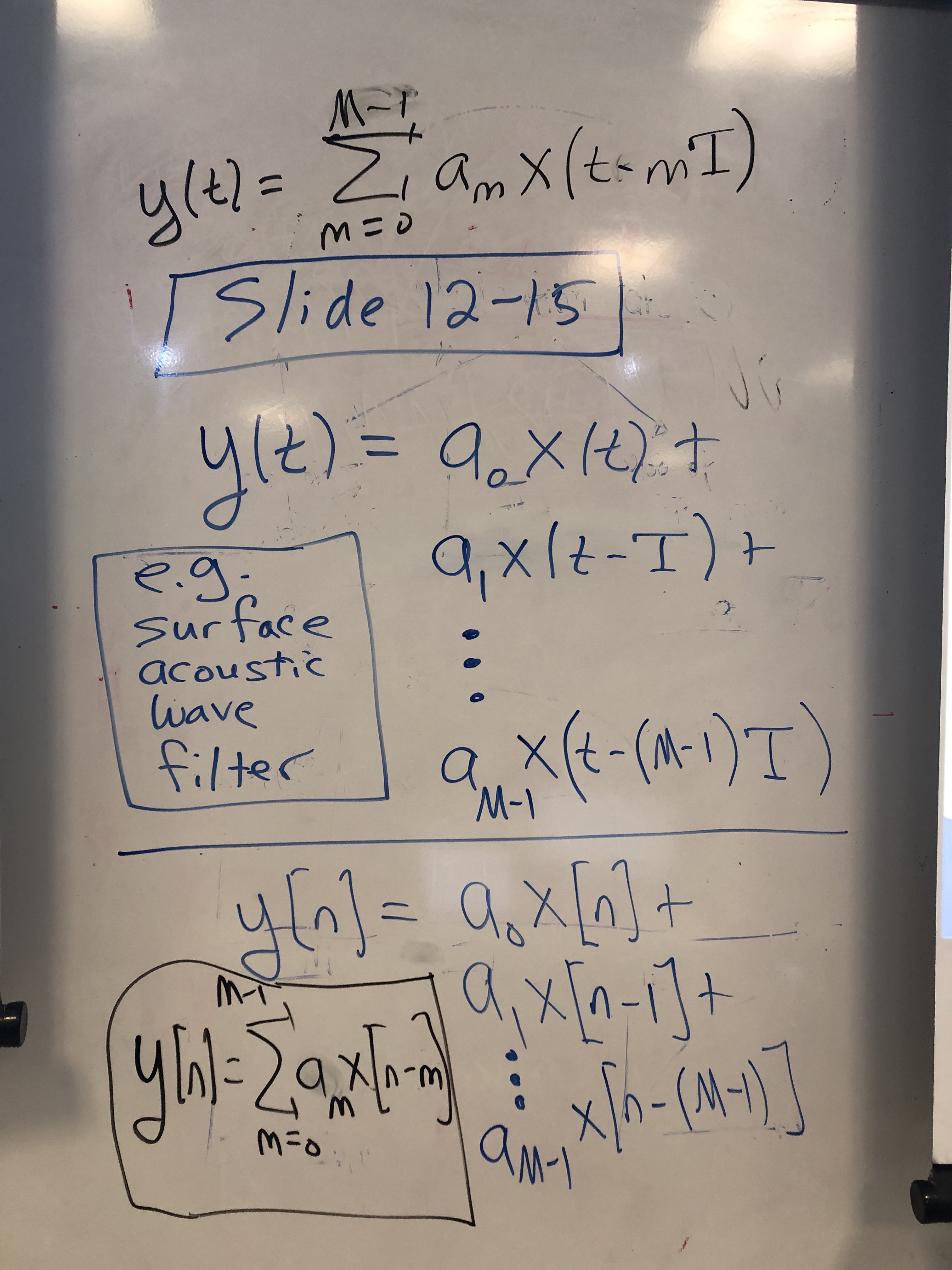

  • Board: Comparing the impulse responese for a tapped delay line in discrete-time vs. continuous-time
  • Handout: Time Invariance Under Observations

• Fall 2023
  • Demo: Sampling and interpolation demos from DSP First

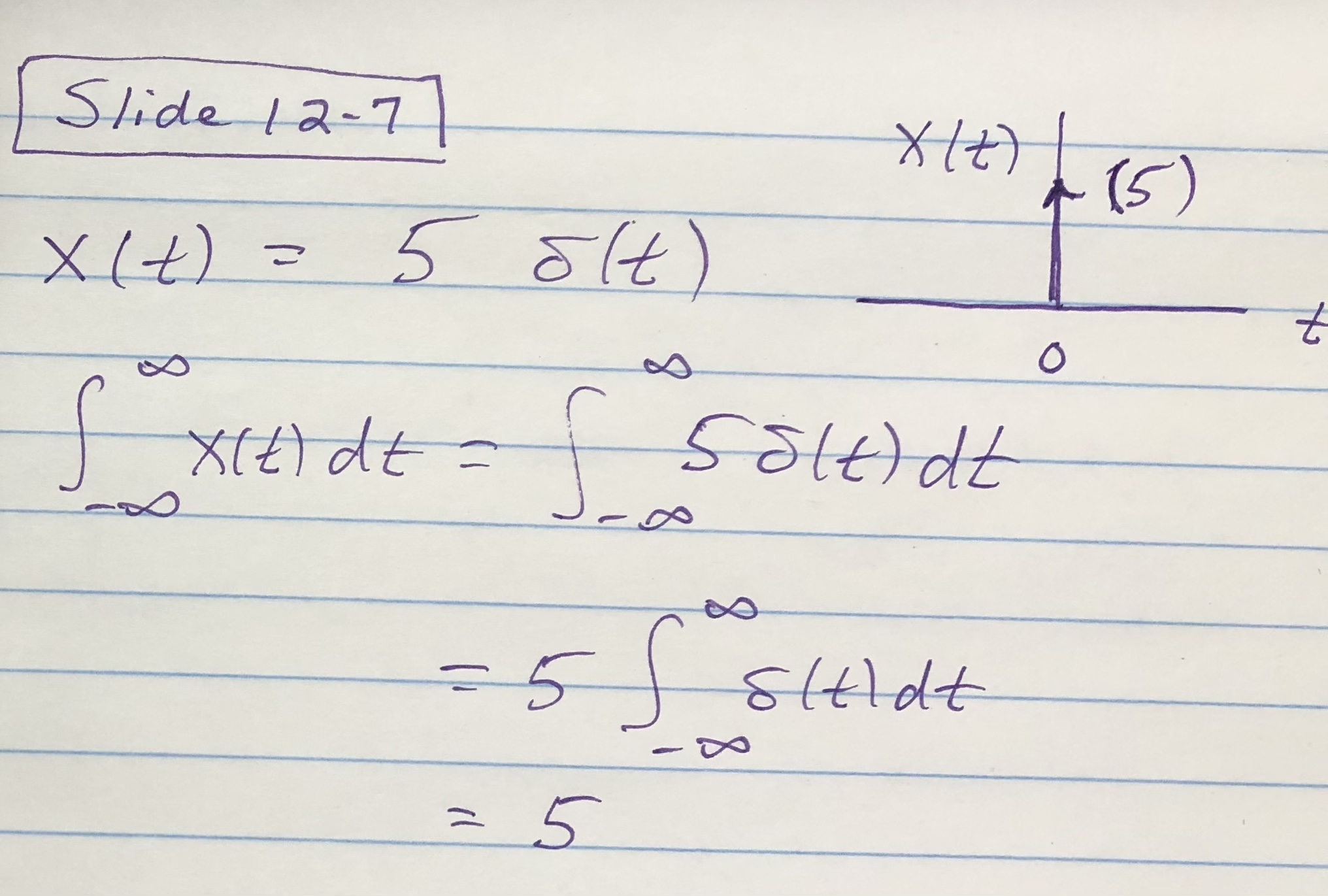

  • Doccam: Dirac Delta area and sifting property

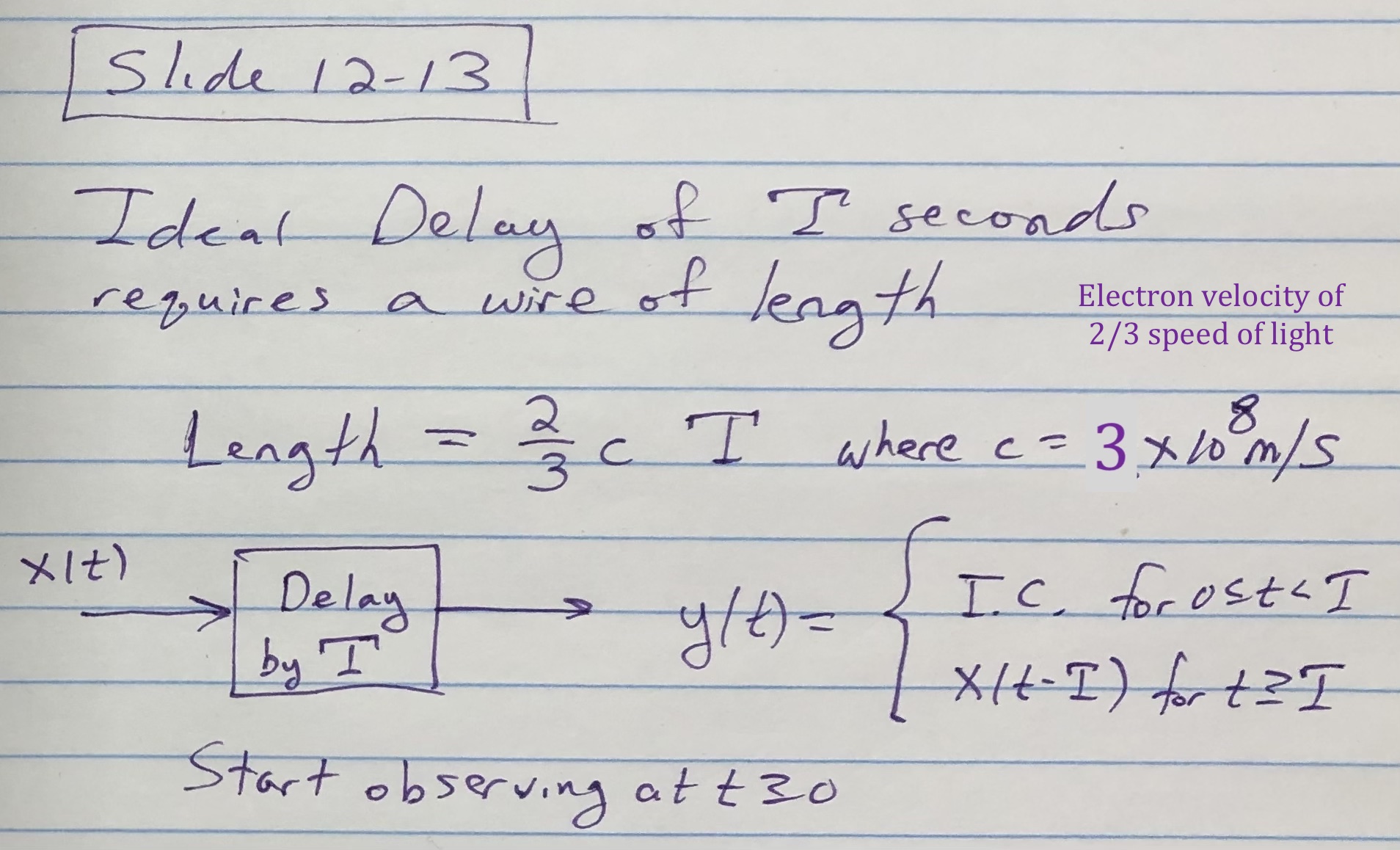

  • Doccam: Initial conditions for integrator and ideal delay

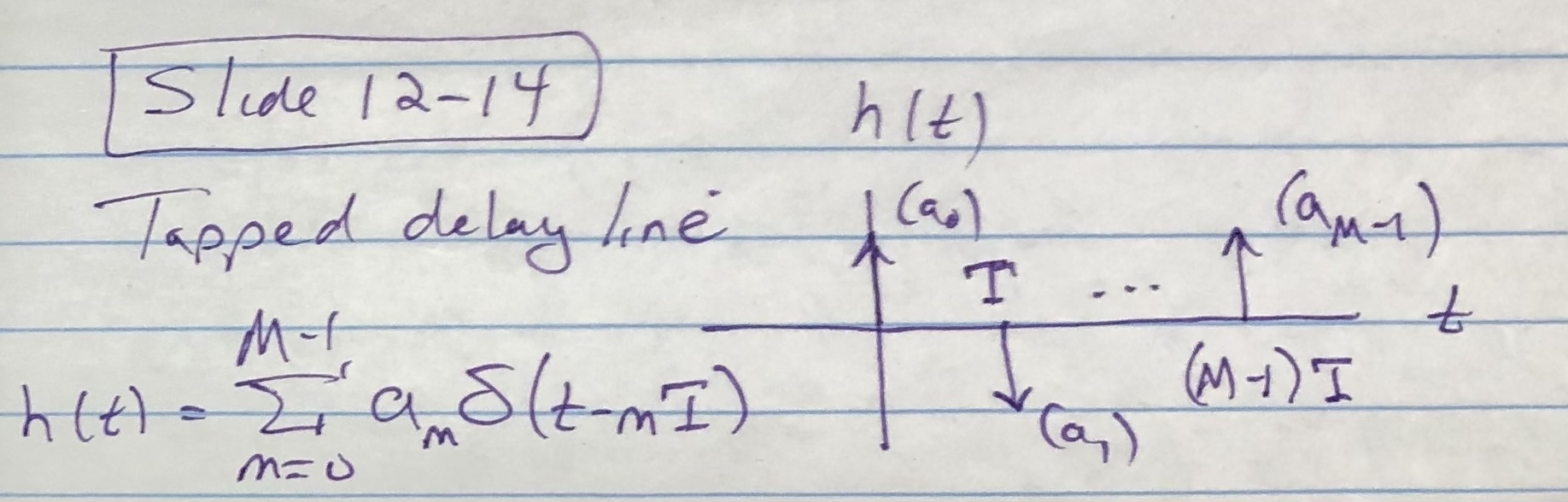

  • Doccam: impulse response of a tapped delay line

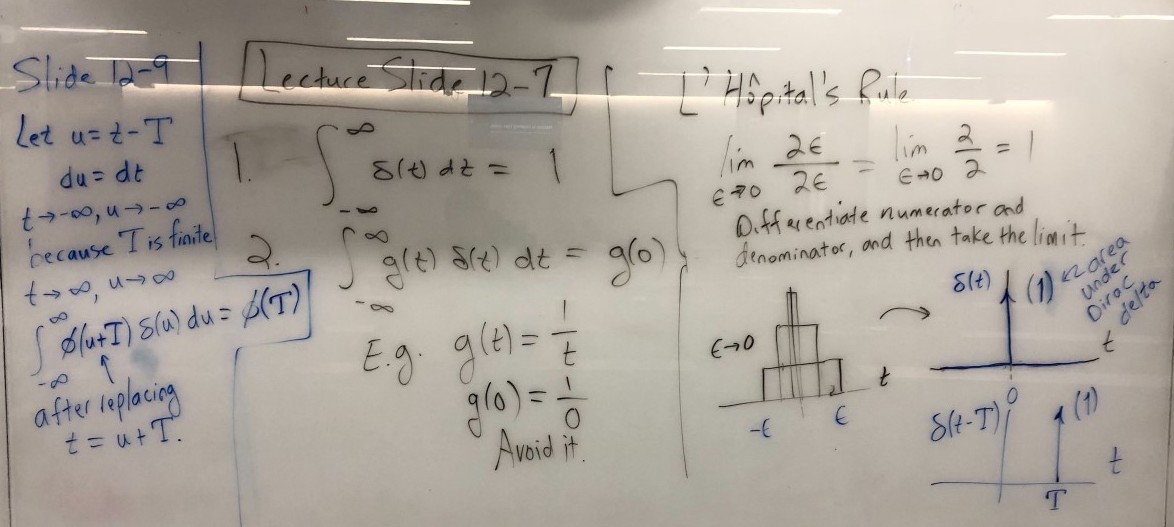

• Fall 2021: Dirac delta and Integrator

• Fall 2018 lecture notes taken by Mr. Houshang Salimian (TA)

Last updated %G%. Send comments to Prof. Evans at bevans@ece.utexas.edu
